CAS Caston II Plus Digital Crane Scale CAS Scales
Authorized Dealer
The Caston II Plus is a full featured industrial crane scale that is easy to see, easy to use, versatile, unquestionably safe, and designed to last! with Bluetooth

Standerd

with Bluetooth Indicator

View Specifications Chart

CAS Caston II Plus Digital Crane Scale

FREE UPS Ground Shipping
(within the 48 continental US States)

CAS TWN Bluetooth Handheld Indicator
CAS TWN Bluetooth Handheld Indicator, add $520.00
CAS THB-BT Bluetooth Module Field Retrofit Kit
CAS THB-BT Bluetooth Module Field Retrofit Kit, add $200.00


More info
Call now The Caston II Plus is a full featured industrial crane scale that is easy to see, easy to use, versatile, unquestionably safe, and designed to last!

The Caston II Crane Scale is a sturdy easy to use crane scale. With capacities up to 10,000 lbs, the Caston II Crane Scale works well in light to medium industrial applications. Comes equipped with a wireless remote control.

  • Available in 1,000 x 0.5 lbs, 2,000 x 1 lb, 5,000 x 2 lbs, and 10,000 x 2 lbs
  • Easy to read 1.2" LED Display
  • Rechargeable battery with charger
  • Spare battery included
  • Wireless Remote Control Standard
  • Optional Field Retrofittable TWN Handheld Portable Indicator
Model CAST2-PLUS(1K) CST2+(1K)BT CAST2-PLUS(2K) CST2+(2K)BT CAST2-PLUS(5K) CST2+(5K)BT CAST2-PLUS(10K) CST2+(10K)BT
CAS CAST2-PLUS(1K) Caston
$1,140.00
buy now
CAS CST2+(1K)BT Caston II
$1,860.00
buy now
CAS CAST2-PLUS(2K) Caston
$1,140.00
buy now
CAS CST2+(2K)BT Caston II
$1,860.00
buy now
CAS CAST2-PLUS(5K) Caston
$1,140.00
buy now
CAS CST2+(5K)BT Caston II
$1,860.00
buy now
CAS CAST2-PLUS(10K) Casto
$1,276.00
buy now
CAS CST2+(10K)BT Caston I
$1,996.00
buy now
Capacity x Readability 1,000 x 0.5 lbs
500 x 0.2 kg
2,000 x 1 lb
1,000 x 0.5 kg
5,000 x 2 lbs
2,000 x 1 kg
10,000 x 2 lbs
5,000 x 1 kg
Bluetooth NO YES NO YES NO YES NO YES
Maximum Tare Full Tare
Display Type LED - 1.2 inch
Display Designators Zero, Tare, Batt
Operating Power Operating Power DC 6V
Power Source AC 120V, 60 Hz
Power Consumption 1 W
Operating Temp 14¢ªF ~ 104¢ªF / -10¢ªC ~ +40¢ªC
Product Weight 33.1 lbs / 15 kg 37.5 lbs / 17 kg 44.1 lbs / 20 kg
Safe Overload 150% of rated capacity
Warranty 2 Years

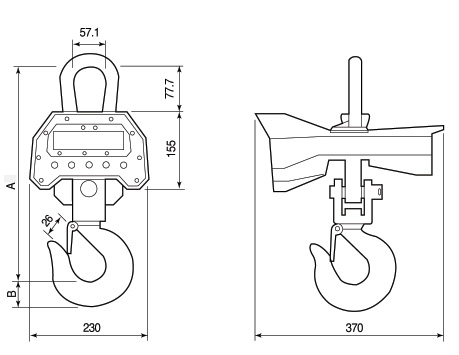

Model A B
CAST2-PLUS(1K) 13.78" / 350 1.18" / 30
CAST2-PLUS(2K) 13.78" / 350 1.18" / 30
CAST2-PLUS(5K) 16.93" / 430 1.75" / 44.5
CAST2-PLUS(10K) 18.66" / 474 1.75" / 44.5

TWN Handheld Indicator
Communication Type Bluetooth
Communication Rate 9,600 bps
Communication Distance Max: 300ft/100m
Display High contrast 320 x 240 TFT LCD
Enclosure Light weight industrial grade NEMA 4/IP65
Memory 100 items/5,000 transactions incl time/date/gross wt
Battery Charging Time Approx 5-6 hrs
Options Wireless or Wired Printer
Power DC 3.6V 4,400mA rechargeable battery
DC 4.2V adapter
Operating Temp 10¢ªC ~ +40¢ªC
Interface USB : PC connection
RS-232C : Mobile printer connection
Dimensions 4.1 (W) x 8 (H) x 2.9 (D) - Inches
104.7 (W) x 204 (H) x74.3 (D) - MM
Product Weight 1.1 lbs/0.5 kg
